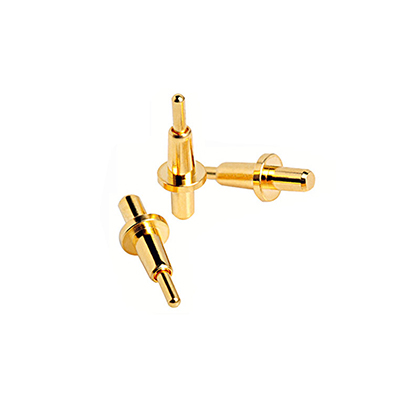

Product name

BIP48 series

Product parameters

Materials & Plated:

Plunger: Becu/SK4, Au on Ni Plated

Barrel: Br, Au on Ni Plated

Spring: SWP/SUS, Au on Ni Plated

Electronic parameters (Electrical Spec.):

Pitch: 5.95 mm (235 mil)

Rated Current: 5 Amps, Continuous

Rated Resistance: 30 mΩ

Full Stroke: 2.15 mm

Rated Stroke: 1.27 mm

Rated Force: 23/56 gf (0.8/2.0 oz)

Product introduction

The charging pin is also called a "pogopin". Mainly used for: charging continuity test of smart home, smart wearable, automotive electronics and other components. The charging pin is a functional pin and is not used for testing. It is mainly used for connection and conduction. It has the characteristics of good conductivity, low resistance and high stability.

Product categories

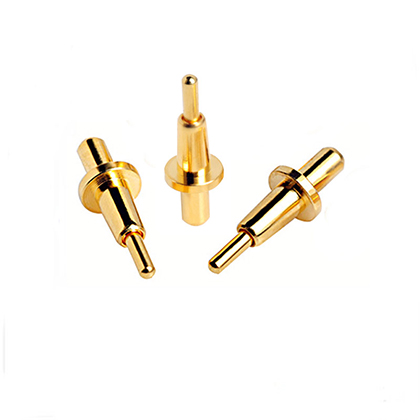

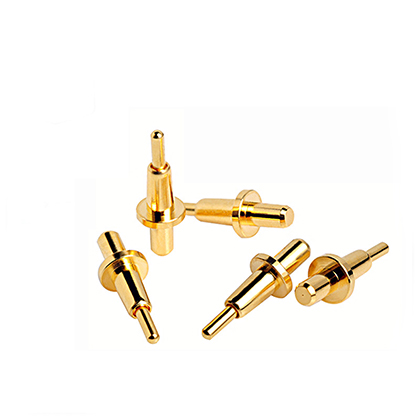

Sample display
