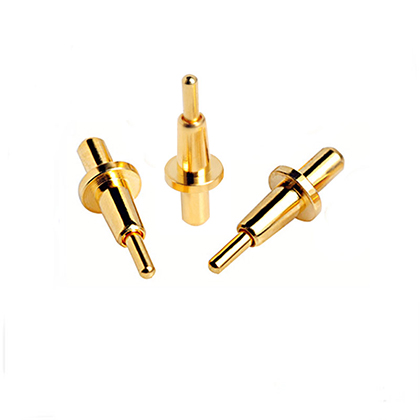

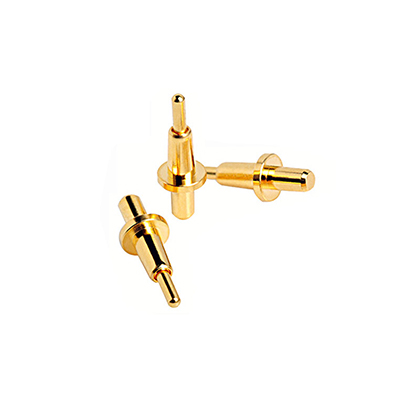

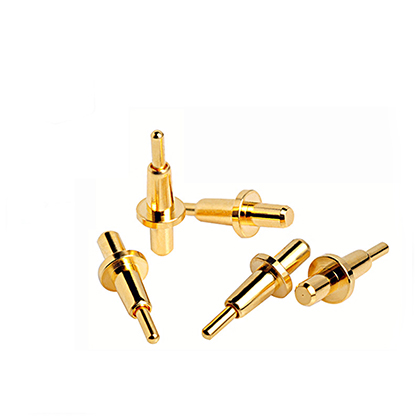

Product name

BIP54 series

Product parameters

Materials & Plated:

Plunger: Becu/SK4, Au on Ni Plated

Barrel: Br, Au on Ni Plated

Spring: SWP/SUS, Au on Ni Plated

Electronic parameters (Electrical Spec.):

Pitch: 6.66 mm (260 mil)

Rated Current: 5 Amps, Continuous

Rated Resistance: 30 mΩ

Full Stroke: 3.50 mm

Rated Stroke: 2.75 mm

Rated Force: 57/112 gf (2.0/4.0 oz)

Product introduction

The charging pin is also called a "pogopin". Mainly used for: charging continuity test of smart home, smart wearable, automotive electronics and other components. The charging pin is a functional pin and is not used for testing. It is mainly used for connection and conduction. It has the characteristics of good conductivity, low resistance and high stability.
