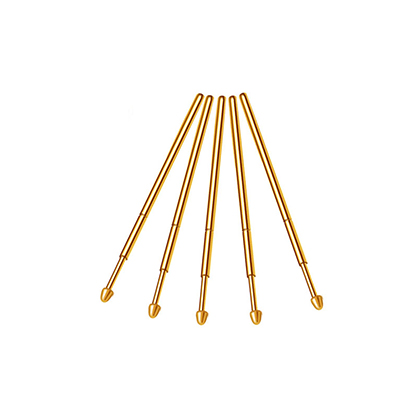

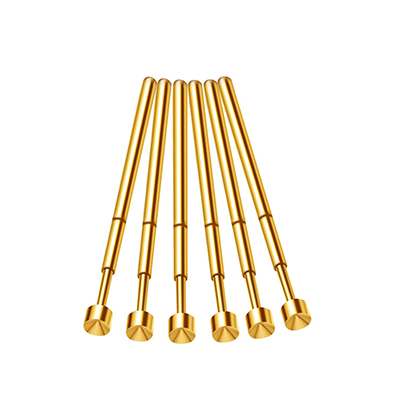

Product name

PT0 series

Product parameters

Materials & Plated:

Plunger: Becu/SK4, Au on Ni Plated

Barrel: Ph/Br, Au on Ni Plated

Spring: SWP/SUS, Au on Ni Plated

针套(Casing)：Ph/Br，Au on Ni Plated

Electronic parameters (Electrical Spec.):

Pitch: 1.27 mm (50 mil)

Rated Current: 3.0 Amps, Continuous

Rated Resistance: 50 mΩ

Mounting Hole Size: Φ 0.95 mm

Rated Stroke: 1.78 mm

Rated Force: 15/20/28/51/56/85 gf (0.5/0.7/1.0/1.8/2.0/3.0 oz)

Connections: CR/SC

Product introduction

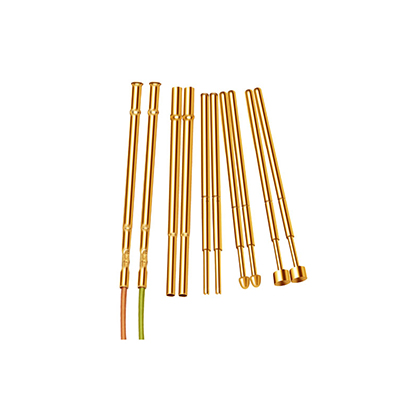

PCB spring pins are mainly used for: PCB board testing to determine defects such as line conduction by comparing the resistance or capacitance between lines. Usually, PCB spring pins are used with needle sleeves. The needle sleeves can be divided into those with wires at the tail and those without wires.
