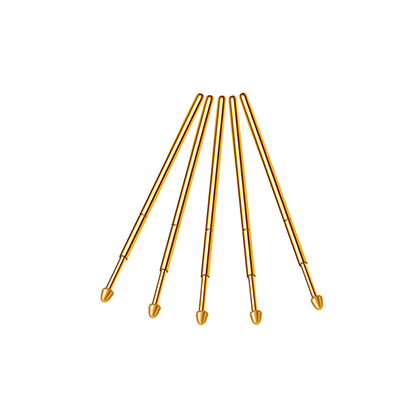

Product name

PT1 series

Product parameters

Materials & Plated:

Plunger: Becu/SK4, Au on Ni Plated

Barrel: Ph/Br, Au on Ni Plated

Spring: SWP/SUS, Au on Ni Plated

针套(Casing)：Ph/Br，Au on Ni Plated

Electronic parameters (Electrical Spec.):

Pitch: 1.91 mm (75 mil)

Rated Current: 3.0 Amps, Continuous

Rated Resistance: 50 mΩ

Mounting Hole Size: Φ 1.35 mm

Rated Stroke: 2.0 mm

Rated Force: 71/113 gf (2.5/4.0 oz)

Connections: CR/SC/WW

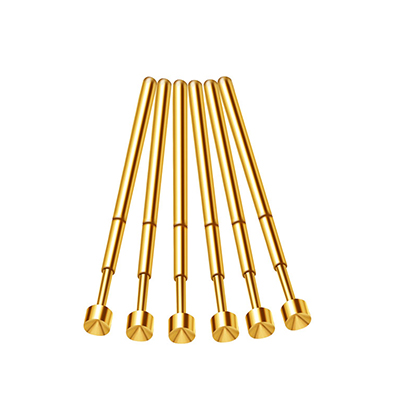

Product introduction

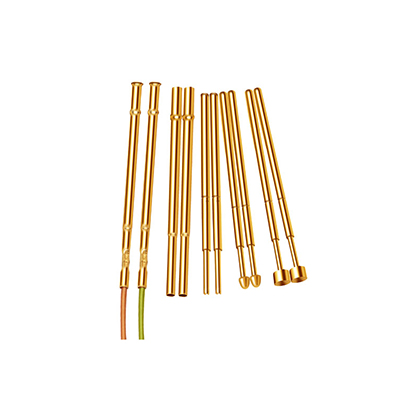

PCB spring pins are mainly used for: PCB board testing, to determine line continuity and other defects by comparing the resistance or capacitance between lines. Usually, PCB spring pins are used with needle sleeves. The needle sleeves can be divided into those with wires at the tail and those without wires.
