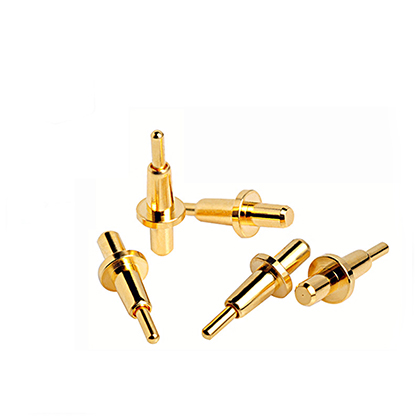

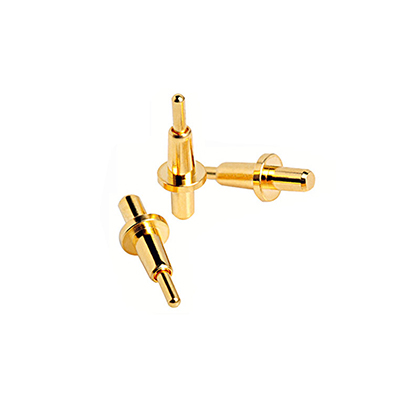

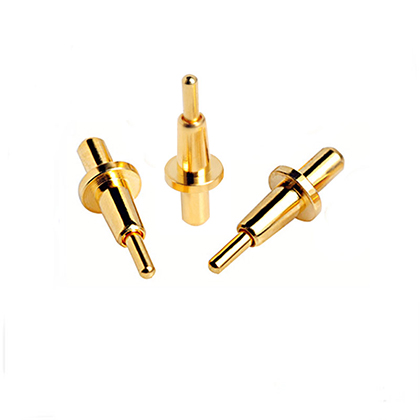

Product name

BIP39 series

Product parameters

Materials & Plated

Plunger: Becu/SK4, Au on Ni Plated

Barrel: Br, Au on Ni Plated

Spring: SWP/SUS, Au on Ni Plated

Electronic parameters (Electrical Spec.):

Pitch: 5.08 mm (200 mil)

Rated Current: 3 Amps, Continuous

Rated Resistance: 40 mΩ

Full Stroke: 2.60 mm

Rated Stroke: 1.70 mm

Rated Force: 113/255 gf (4.0/9.0 oz)

Product introduction

The charging pin is also called a "pogopin". Mainly used for: charging continuity test of smart home, smart wearable, automotive electronics and other components. The charging pin is a functional pin and is not used for testing. It is mainly used for connection and conduction. It has the characteristics of good conductivity, low resistance and high stability.
