Rated current: 8A(30S)/5A(300S)
Product Description：Harness needles are mainly used for automotive harness testing and direct use, but also some products are used in communication electronics, medical equipment, equipment automation and other fields. Its product standards and requirements are higher than other series of test needles. Types of wiring harness needles: threaded/non-threaded wiring harness needles, wiring harness - switching needles, wiring harness - high current needles and so on.
Product name

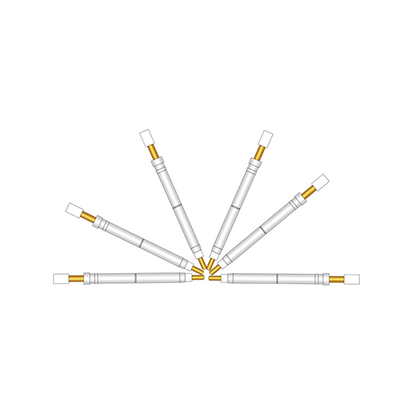

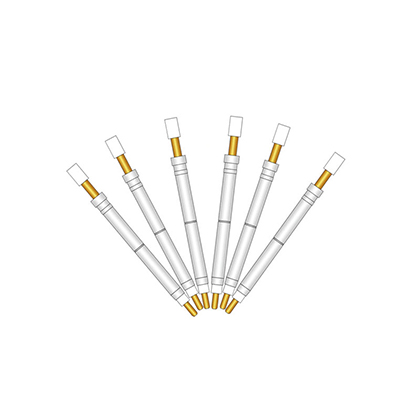

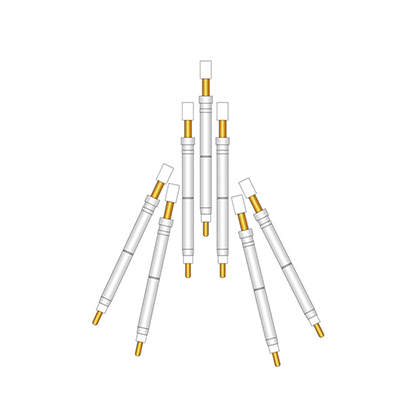

SWP298-F-490-7G(B) series
Product parameters
Materials & Plated:
Needle 1 (Plunger): BeCu, Au on Ni Plated
Barrel: Brass, Ni Plated
Needle 2 (Plunger): BeCu, Au on Ni Plated
Parts: PTFE
Spring: SUS, No Plated
Electronic parameters (Electrical Spec.):
Rated current (Current Rating): 8A (30S)/5A (300S)
Contact Resistance: 50 milohms
Technical requirements (Specifications):
Full Stroke: 4.67 mm
Rated Stroke: 2.50 mm
Rated elastic force (Spring Force): 200 gf@load 2.50 mm
Normality Condition: Needle bars 1 and 2 are disconnected
Press Down: Needle bar 1 and 2 are connected (press down 2.0 mm)
Product introduction
Wire harness pins are mainly used for automotive wiring harness testing and direct use. Some products are also used in communication electronics, medical equipment, equipment automation and other fields. Its product standards and requirements are higher than other series of test pins. Types of wire harness pins: threaded/non-threaded wire harness pins, wire harness-switch pins, wire harness-high current pins, etc.
Product categories
Sample display
Application areas
