Product name

SWP165-HQ30-456-5MG(B) series

Product parameters

Materials & Plated:

Needle 1 (Plunger): BeCu, Au on Ni Plated

Barrel: Brass, Au on Ni Plated

Needle 2 (Plunger): BeCu, Au on Ni Plated

Parts: PTFE

Spring: SWP, Au on Ni Plated

Electronic parameters (Electrical Spec.):

Rated current (Current Rating): 17A (30s)/10A (300s)

Contact Resistance: 160 milohms

Technical requirements (Specifications):

Full Stroke: 5.0 mm

Rated Stroke: 3.3 mm

Rated elastic force (Spring Force): 100 gf@load 3.3 mm

Normality Condition: Needle bars 1 and 2 are disconnected

Press Down: Needle bar 1 and 2 are connected (press down 1.5 mm)

Product introduction

Wire harness pins are mainly used for automotive wiring harness testing and direct use. Some products are also used in communication electronics, medical equipment, equipment automation and other fields. Its product standards and requirements are higher than other series of test pins. Types of wire harness pins: threaded/non-threaded wire harness pins, wire harness-switch pins, wire harness-high current pins, etc.

Product categories

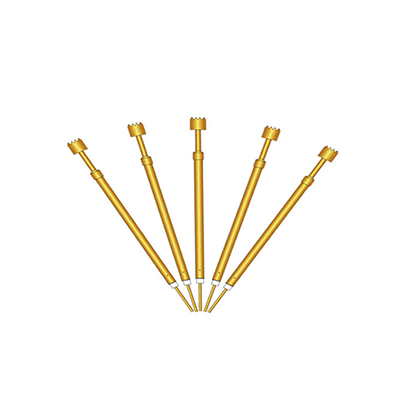

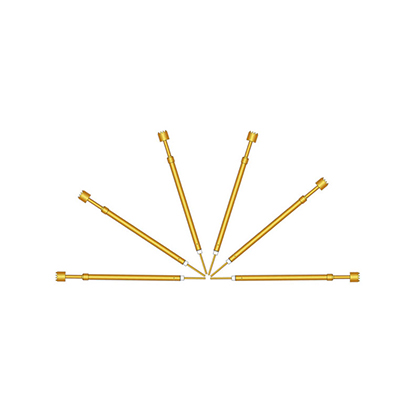

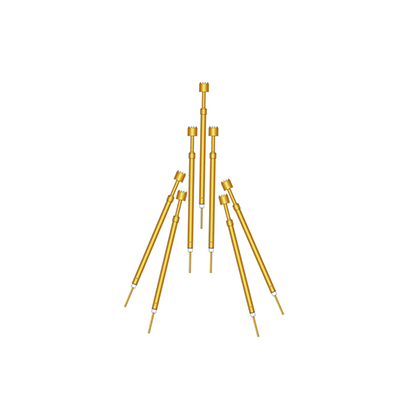

Sample display
