Product name

PT038 series

Product parameters

Materials & Plated:

Plunger: Becu/SK4, Au on Ni Plated

Barrel: Ph/Br, Au on Ni Plated

Spring: SWP/SUS, Au on Ni Plated

针套(Casing)：Ph/Br，Au on Ni Plated

Electronic parameters (Electrical Spec.):

Pitch: 0.76 mm (30 mil)

Rated Current: 0.5 Amps, Continuous

Rated Resistance: 180 mΩ

Mounting Hole Size: Φ 0.55 mm (75#)/Φ 0.60 mm (74#)

Rated Stroke: 1.30 mm

Rated Force: 11/23 gf (0.4/0.8 oz)

Product introduction

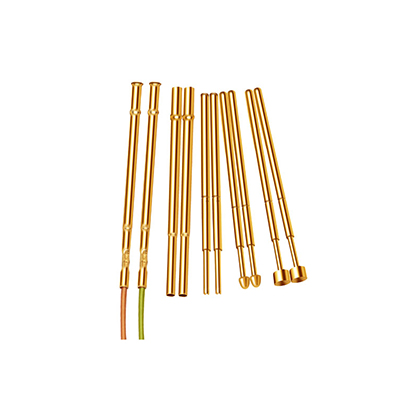

PCB spring pins are mainly used for: PCB board testing, to determine line continuity and other defects by comparing the resistance or capacitance between lines. Usually, PCB spring pins are used with needle sleeves. The needle sleeves can be divided into those with wires at the tail and those without wires.

Product categories

Installation method

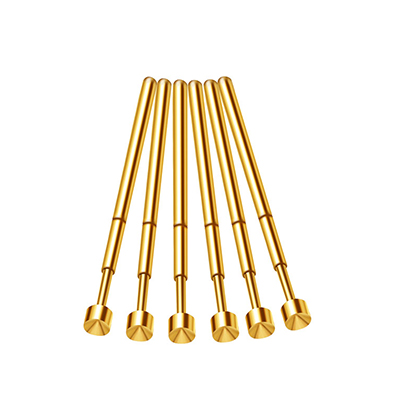

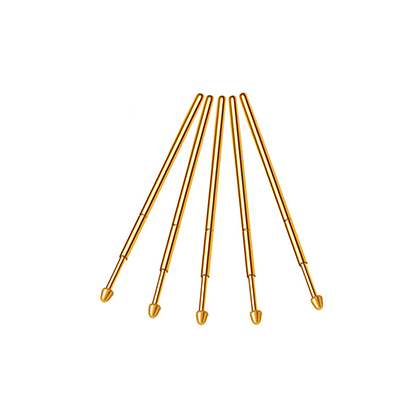

Sample display

Application areas
