Product name

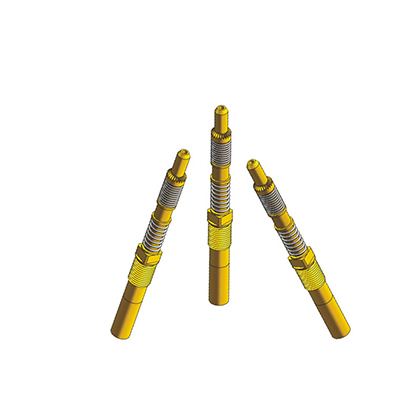

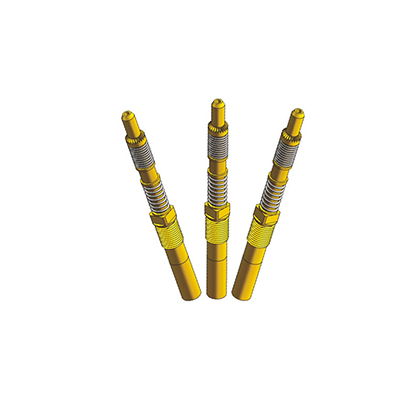

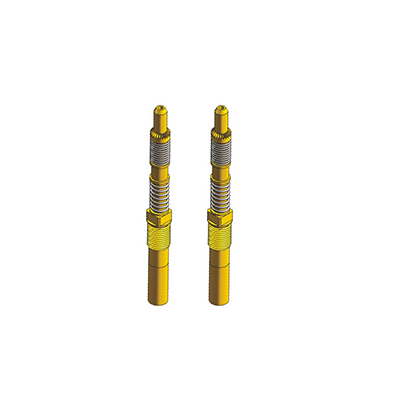

PM380-A-355-15SG(BB) series

Product parameters

Materials & Plated:

Needle 1 (Plunger): BeCu, Au on Ni Plated

Barrel: PH, Au on Ni Plated

Needle 2 (Plunger): Brass, Au on Ni Plated

Parts: PTFE, No Plated

Spring: SUS, Au on Ni Plated

Electronic parameters (Electrical Spec.):

Full Stroke: 4.0 mm

Rated Stroke: 3.2 mm

Rated Force: 450 gf@load 3.2mm

Current Rating: 3 Amps

Product introduction

Radio frequency needles are also called "RF probes". They have the characteristics of relatively concentrated signals and low losses. In the testing of high-speed digital circuit boards and microwave chips, the impedance and loss of radio frequency probes are very high. Require. Mainly used for signal, detection and measurement output of high-frequency RF, radio frequency and microwave modules, and electrical performance analysis of high-frequency circuit boards. RF probes have complex design structures, many components, and high added value, and are mostly custom-made.
