Product name

6.43×2.0×0.05 series

Product parameters

Materials & Plated:

Material: Ni Alloy

Plated: Au on Ni Plated

Electronic parameters (Electrical Spec.):

Current Rating: 1.5 Amps

Contact Resistance: 80 mΩ

Technical requirements (Specifications):

Thickness: 0.05 mm

Full Stroke: 0.60 mm

Rated Stroke: 0.45 mm

Rated Force: 28 gf

Mechanical life (Life Cycle): 400,000

Product introduction

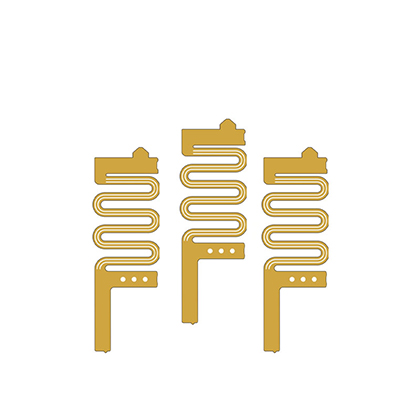

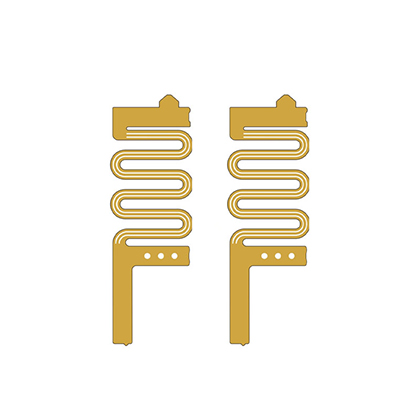

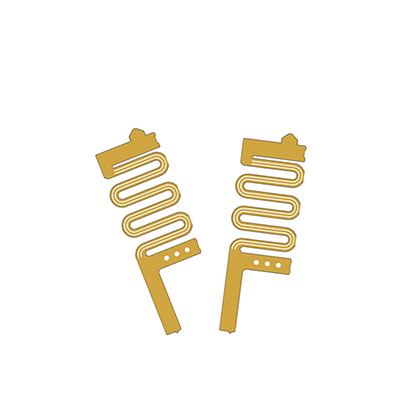

The shrapnel test needle is referred to as "shrapnel needle", also known as "blade needle". It has the characteristics of being able to handle smaller pitches, high test efficiency, high stability, and long life, and plays the role of transmitting signals and conducting current. Mainly used for testing precision pitch connectors such as mobile phones, chips, and screens.
