Product name

P288(100)-HR20-360-25G(B) series

Product parameters

Materials & Plated:

Plunger: BeCu, Au on Ni Plated

Barrel: Brass, Au on Ni Plated

Spring: SWP, Au on Ni Plated

Parts: POM

Electronic parameters (Electrical Spec.):

Rated current (Current Rating): 20A (30s)/18A (300s)

Contact Resistance: 20 mΩ

Technical requirements (Specifications):

Full Stroke: 4.4 mm

Rated Stroke: 3.0 mm

Rated elastic force (Spring Force): 700 gf@load 3.0 mm

Product introduction

High current probes are also called "high current probes", which are characterized by large test current and high test conditions and temperatures. It is mainly used in the field of high-temperature and high-current online testing, such as the testing of photovoltaic new energy batteries, etc. It has the characteristics of large test current and high test condition temperature.

Product categories

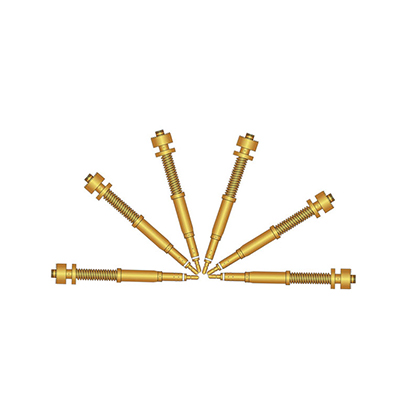

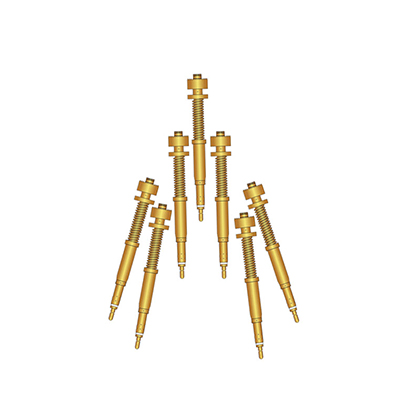

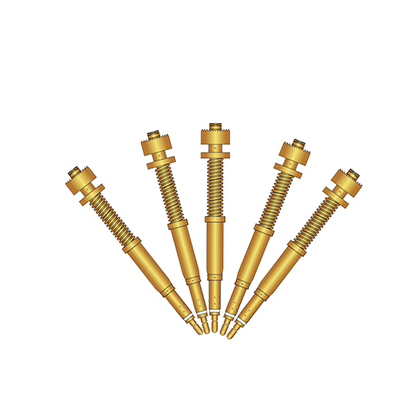

Sample display
