Product name

P230-H-8G(B) series

Product parameters

Materials & Plated:

Plunger: BeCu, Au on Ni Plated

Barrel: Brass, Ni Plated

Spring: SUS, No Plated

Electronic parameters (Electrical Spec.):

Rated current (Current Rating): 70A (30s)/60A (300s)

Contact Resistance: 50 mΩ

Technical requirements (Specifications):

Full Stroke: 10.0 mm

Rated Stroke: 6.7 mm

Rated elastic force (Spring Force): 230 gf@load 6.7 mm

Product introduction

High current probes are also called "high current probes", which are characterized by large test current and high test conditions and temperatures. It is mainly used in high-temperature and high-current online testing fields, such as photovoltaic new energy battery testing, etc. It has the characteristics of large test current and high test condition temperature.

Product categories

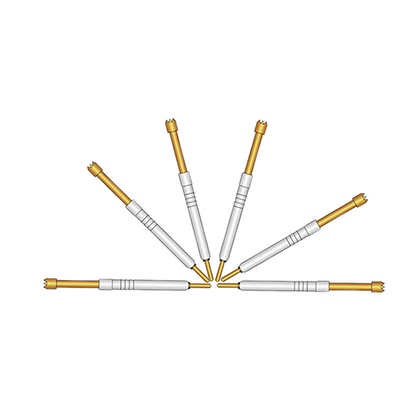

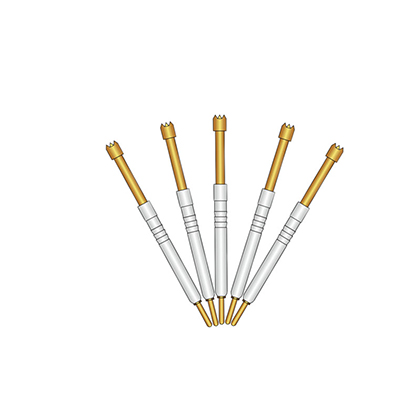

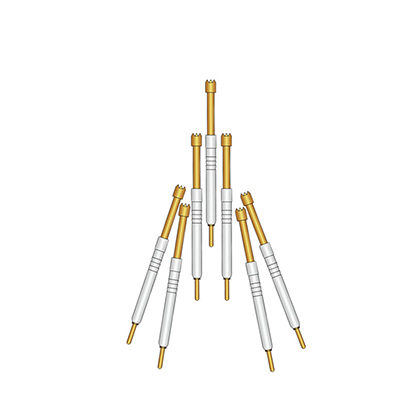

Sample display
