Product name

PE100 series

Product parameters

Materials & Plated:

Plunger: Becu/SK4, Au on Ni Plated

Barrel: Ph/Br, Au on Ni Plated

Spring: SWP/SUS, Au on Ni Plated

针套(Casing)：Ph/Br，Au on Ni Plated

Electronic parameters (Electrical Spec.):

Pitch: 2.54 mm (100 mil)

Rated Current: 3 Amps, Continuous

Rated Resistance: 30 mΩ

Mounting Hole Size: ø1.75 mm

Full Stroke: 6.40 mm

Rated Stroke: 4.30 mm

Rated Force: 100/120/56/203/255/284/312 gf (3.5/4.0/5.5/7.2/9/10/11 oz)

Product introduction

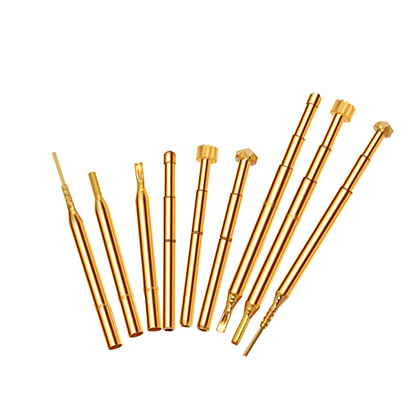

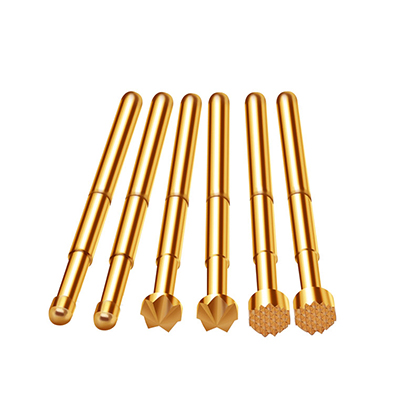

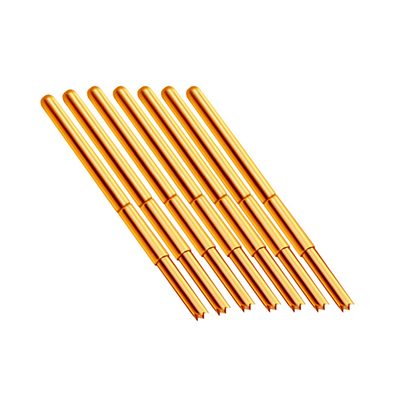

ICT test needle, also known as "test needle". Mainly used for: online circuit testing and functional testing, detecting the electrical performance of online components on the finished board and the connection status of the circuit network, and being able to quantitatively measure components and perform functional testing.

Typically, ICT test pins are used with their matching size pin sleeves, which are fixed on the PCB board to facilitate probe replacement at any time.
